Description

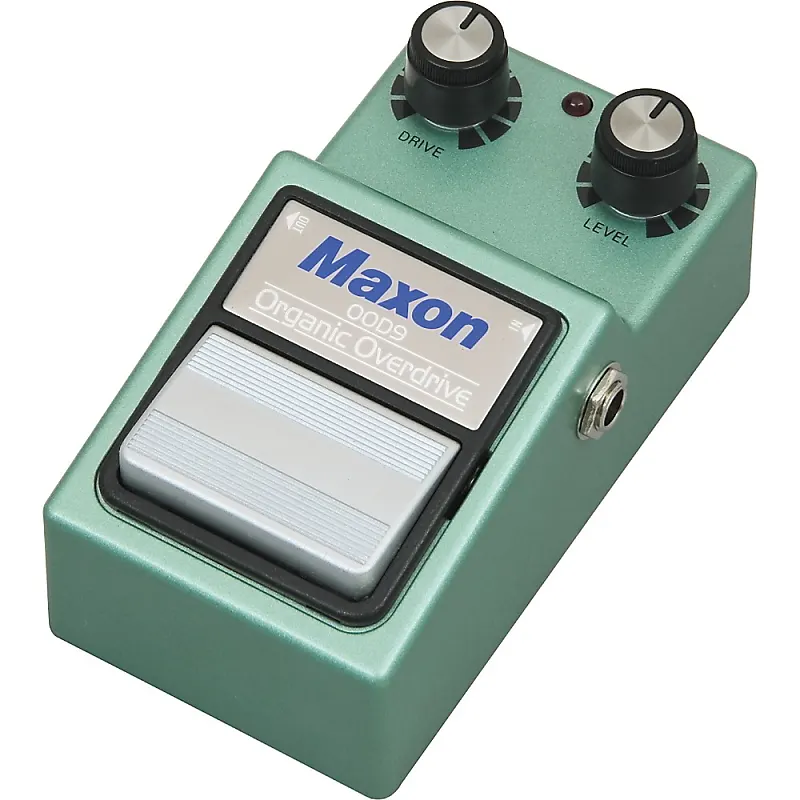

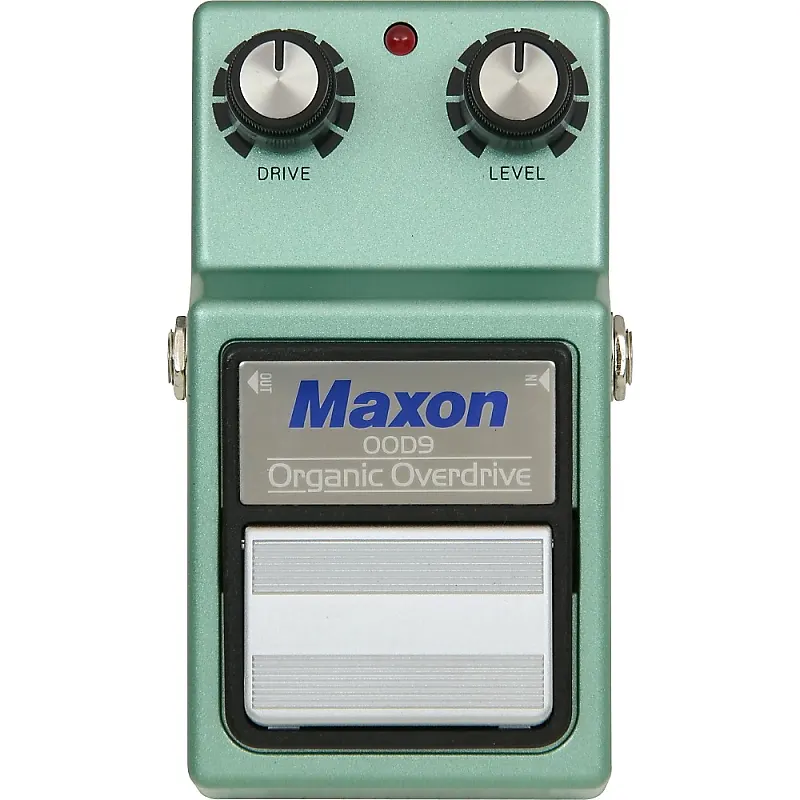

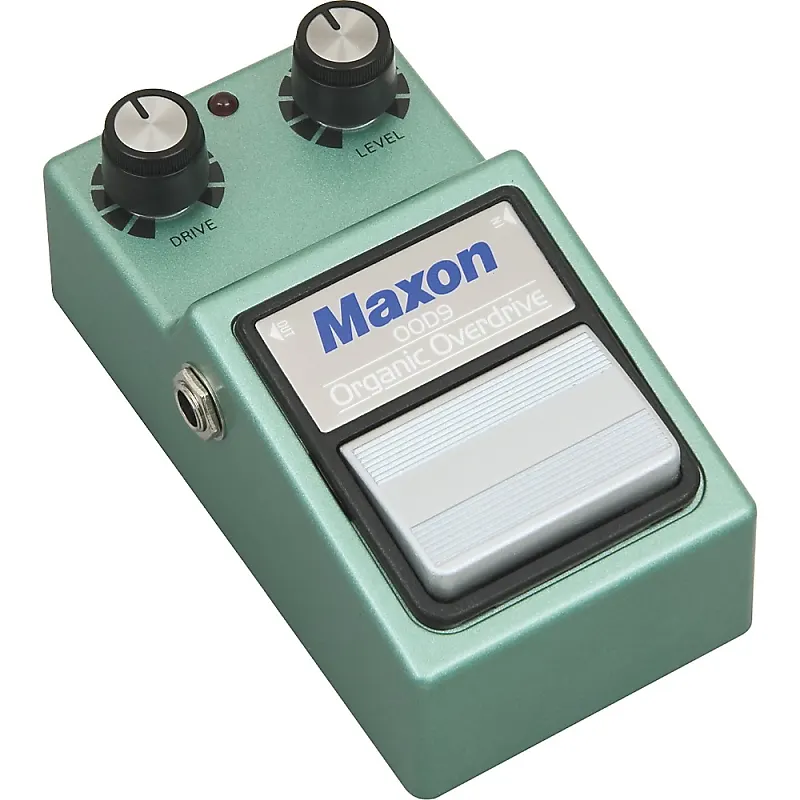

The Maxon 9-Series OOD-9 Organic Overdrive is an updated version of Vintage OD880--the last of the legendary overdrives! Features the JRC4558 IC Chip. Amazingly Transparent, dynamic overdrive with no compression and true bypass switching.
Since their introduction in the early 1980's, Maxon 9-Series stombox designs have achieved a legendary, almost mythical status with guitar effect pedal connoisseurs around the globe. The reasons for this are simple--superior sound quality and innovative features that offer a seamless interface between performer and performance--nothing more, nothing less. 20 years later this rule still holds true. Now available with improved circuitry including true bypass switching, Maxon 9-Series effects pedals remain the standard by which all others are judged. Experience the power of nine - Maxon 9-Series guitar effects.
Features
- JRC4558 IC Chip
- Low gain, dynamic overdrive like a tube amp
- Works great as an amp booster
- Stack with other OD’s for increased tonal options
- True Bypass Switching
Specs
Input Impedance: 500K Ohms
Output Impedance: 10K Ohms or less
Maximum Gain: 41.5dB (700Hz)
Equivalent Input Noise: -107dB or less (IHF-A)
Control: DRIVE, LEVEL
Operating Voltage: 9V
Power Consumption: 18mA/DC 9V, 18mA/DC 10V
Dimensions: 74 (W) x 124 (D) x 54 (H) mm
Weight: 580g (including battery)
Battery: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
Battery life: Manganese dry battery 10.5 hours 25deg C / 77deg F (Panasonic 6F22NB)
Alkaline dry battery 23 hours 25deg C / 77deg F (Panasonic 6LR61G)
Option: Maxon AC adaptor (Maxon AC210N for North America)
